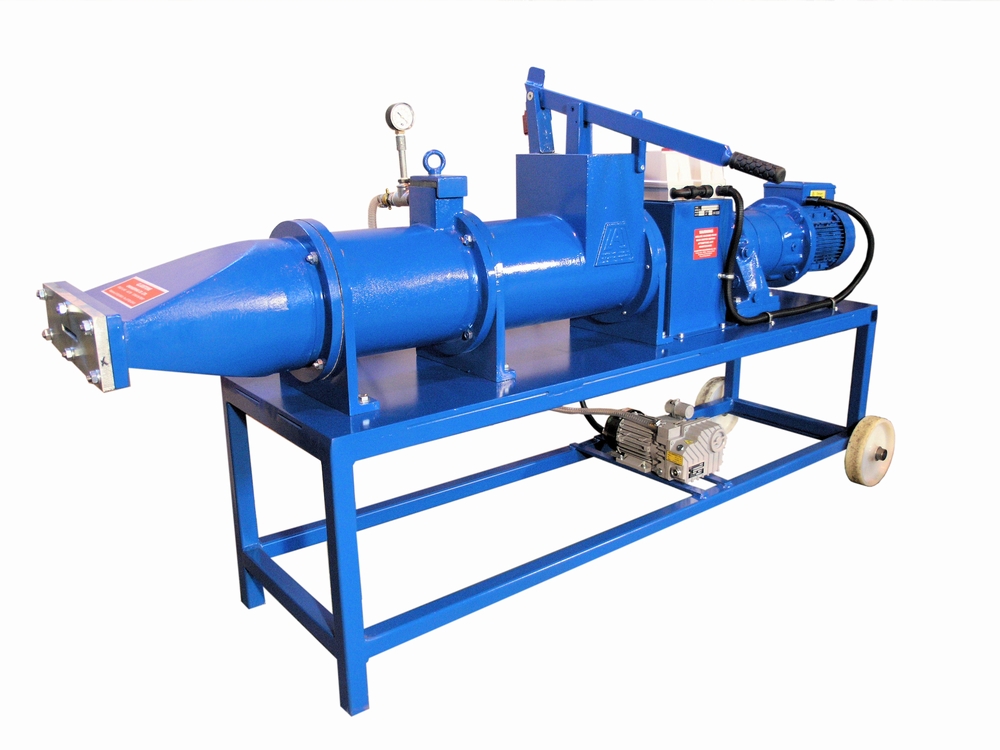

G70 Tile Extruder

G70 Tile Extruder
Product Code: G70
The Gladstone tile extruder is a very versatile machine, as besides extruding tiles, mouldings, coils etc can also be extruded with the use of the optional die plates. With the standard 100 mm diameter nose cone supplied with the machine other shapes, such as hollow forms, can be extruded with the use of optional die plates. To obtain optimum performance with the Gladstone tile extruder one must be willing to experiment. Keeping in mind the variables that are presnt when working in clay, the importance of moisture content, die balance, shapes etc. The Gladstone tile extruder is a purpose designed machine for the extrusion of tiles and as such is an ideal machine for the small clay manufacturer. It has been designed around our standard de-air pugmill using the same principal of design but incorporating a larger higher torque motor gearbox unit. The machine is also fitted with a completely new nose cone outlet designed to enable tiles of approximately 280 mm width upto 25 mm thick to be extruded. Smaller and/or thinner tiles can also be extruded by the use of accessory die plates fitted to the front of the nose cone.
Ceramic literature frequently reminds operators of industrial equipment that extruding is an exact science, fraught with trial and error. With these factors in mind we have designed the Gladstone tile extruder to be able to be finely tuned by the use of variable blades and a range of additional options, the only extruder that is manufactured this way.


£8,400.00 (£7,000.00 Ex VAT)

This item cannot be purchased online, please email us or call 01782 536615 to order. Pallet Delivery: £168.00 (£140.00 Ex VAT)
Please Note! This product is subject to a delivery charge of £140.00 Ex VAT per item
[click here for more details about our delivery system]


Specifications

Delivery Weight: 270kg
Vacuum pump: High volume oil immersed
Drive Motor: 2.2Kw (3 Hp) reduction drive gearbox direct drive 230 single phase / 400v three phase
Output: Approximately 500 Kg per hour With tile nose cone approximately 60/80 sq f per hour
Dimensions: 1905 mm long x 690mm wide x 1050mm high
Construction: Cast Aluminium 200mm barrel with 100mm tile nose cone extrusion , Split body to facilitate easy cleaning
Optional extras: Variable speed / Stainless steel pack
Finish: Durable powder coated finish

Gladstone Engineering reserves the right to change any specifications without notice.
