Pugmills and Extruders > Pugmills
Product Code: G55
Gladstone Engineering produce the G53 and G55 pugmills which are unique in their design.
These pugmills are mounted vertically, creating the added benefit of a small foot print as regards to the space they require. Yet, due to the design, they offer superior performance over conventional horizontal machines.
The Vertical pugmils are manufactured from heavy, section cast Aluminium castings and have individually mounted auger blades which can be altered to change the configuration. This allows the pugmill to suit different Clays and extrusion applications. The Auger is mounted through two taper thrust bearings and is driven via a flexible coupling from a inline helical geared motor.
These pugmills are most suited to users who frequently recycle larger quantities of Clay than the standard horizontal pugmills.
£6,816.00 (£5,680.00 Ex VAT) Pallet Delivery: £396.00 (£330.00 Ex VAT)
Gladstone Engineering reserves the right to change any specifications without notice.

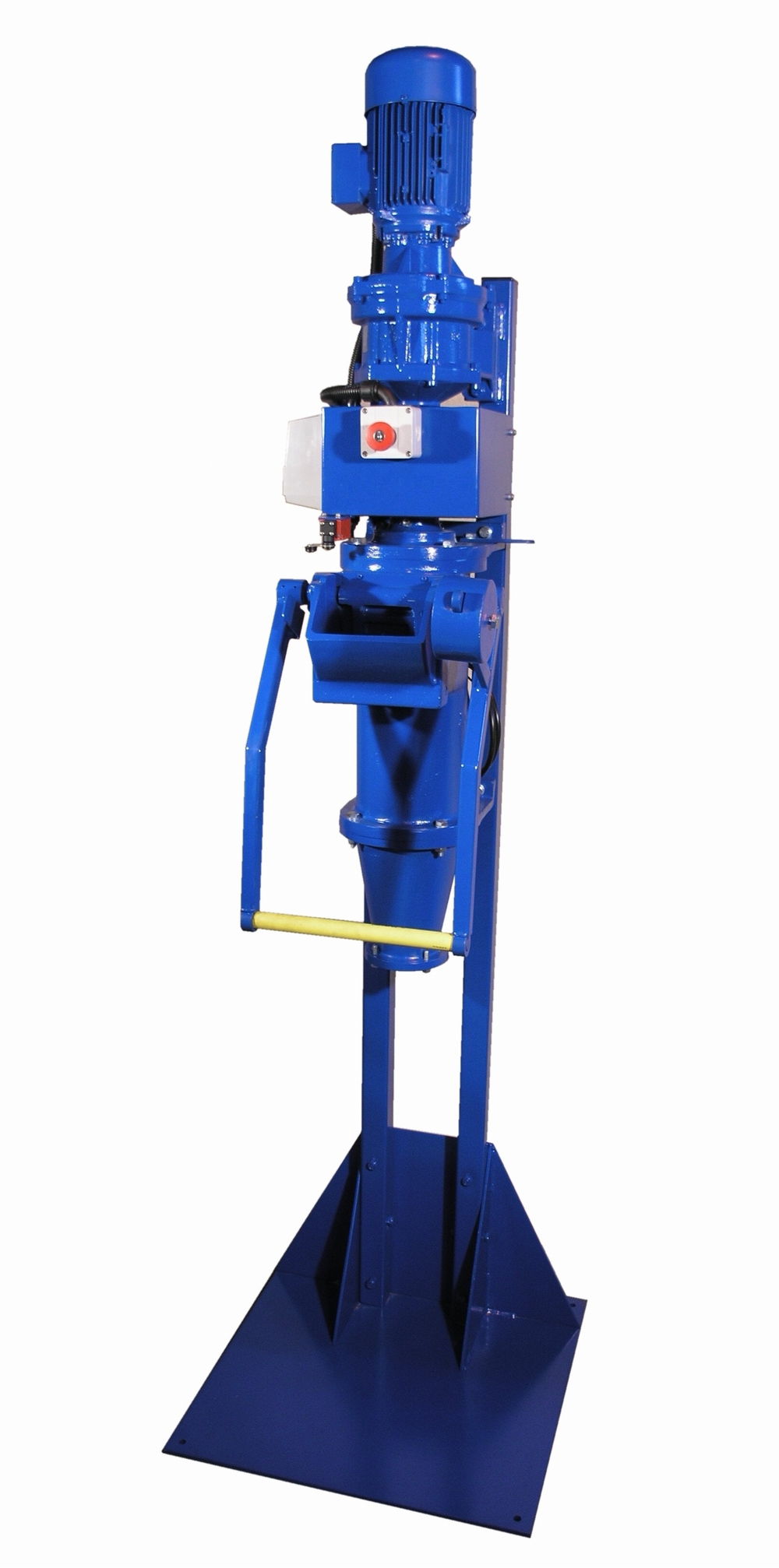

G55 Vertical Pugmill
Gladstone Engineering produce the G53 and G55 pugmills which are unique in their design.
These pugmills are mounted vertically, creating the added benefit of a small foot print as regards to the space they require. Yet, due to the design, they offer superior performance over conventional horizontal machines.
The Vertical pugmils are manufactured from heavy, section cast Aluminium castings and have individually mounted auger blades which can be altered to change the configuration. This allows the pugmill to suit different Clays and extrusion applications. The Auger is mounted through two taper thrust bearings and is driven via a flexible coupling from a inline helical geared motor.
These pugmills are most suited to users who frequently recycle larger quantities of Clay than the standard horizontal pugmills.
£6,816.00 (£5,680.00 Ex VAT) Pallet Delivery: £396.00 (£330.00 Ex VAT)
Please Note!
This product is subject to a delivery charge of £330.00 Ex VAT per item
[click here for more details about our delivery system]
[click here for more details about our delivery system]
Specifications | |
| Delivery Weight: | 300kg |
| Drive Motor: | 1.1Kw (1.5 Hp) reduction drive gearbox direct drive 230/ 400v |
| Output: | Approximately 700 Kg per hour |
| Dimensions: | 760mm long x 760mm wide x 2300mm high |
| Construction: | Cast Aluminium 200mm barrel with 100mm extrusion , Split body to facilitate easy cleaning |
| Finish: | Durable two stage coated finish |
Gladstone Engineering reserves the right to change any specifications without notice.
