Product Code: G52P
The G52P power-feed pugmill is a welcome addition to Gladstone's range of machinery.
The G52P is based on our popular G52 range but has the added benefit of a powered feed system. This eliminates the need for a feed handle and plunger making the machine extremely user friendly.
The power feed mechanism consists of two alloy feed rollers driven via a reduction drive, during loading the drive is isolated from the pugmill via a electronically interlocked loading lid, which prevents contact with the feed rollers whilst in use.
All Gladstone pugmills are easy to clean and maintain and the G52P is no exception. The pugmill can be supplied with a number of options, including die plates for coil extrusions.
£6,600.00 (£5,500.00 Ex VAT) Pallet Delivery: £198.00 (£165.00 Ex VAT)
Gladstone Engineering reserves the right to change any specifications without notice.

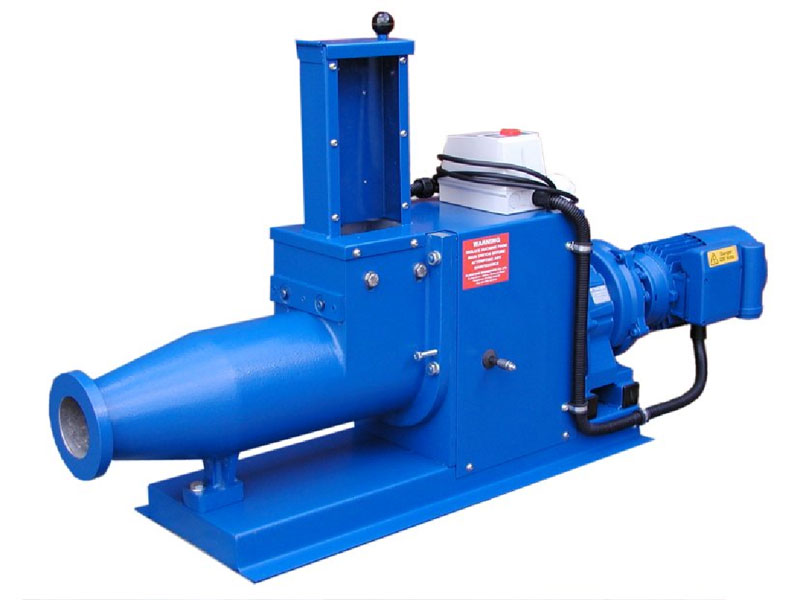

G52P power feed pugmill
The G52P power-feed pugmill is a welcome addition to Gladstone's range of machinery.
The G52P is based on our popular G52 range but has the added benefit of a powered feed system. This eliminates the need for a feed handle and plunger making the machine extremely user friendly.
The power feed mechanism consists of two alloy feed rollers driven via a reduction drive, during loading the drive is isolated from the pugmill via a electronically interlocked loading lid, which prevents contact with the feed rollers whilst in use.
All Gladstone pugmills are easy to clean and maintain and the G52P is no exception. The pugmill can be supplied with a number of options, including die plates for coil extrusions.
£6,600.00 (£5,500.00 Ex VAT) Pallet Delivery: £198.00 (£165.00 Ex VAT)
Please Note!
This product is subject to a delivery charge of £165.00 Ex VAT per item
[click here for more details about our delivery system]
[click here for more details about our delivery system]
Specifications | |
| Delivery Weight: | 71kg |
| Drive Motor: | 0.75Kw (1 Hp) reduction drive gearbox direct drive 230/ 400v |
| Output: | Approximately 360 Kg per hour |
| Dimensions: | 1300mm long x 310mm wide x 510mm high |
| Construction: | Cast Aluminium 150mm barrel with 75mm extrusion , Split body to facilitate easy cleaning |
| Finish: | Durable powder coated finish |
Gladstone Engineering reserves the right to change any specifications without notice.
