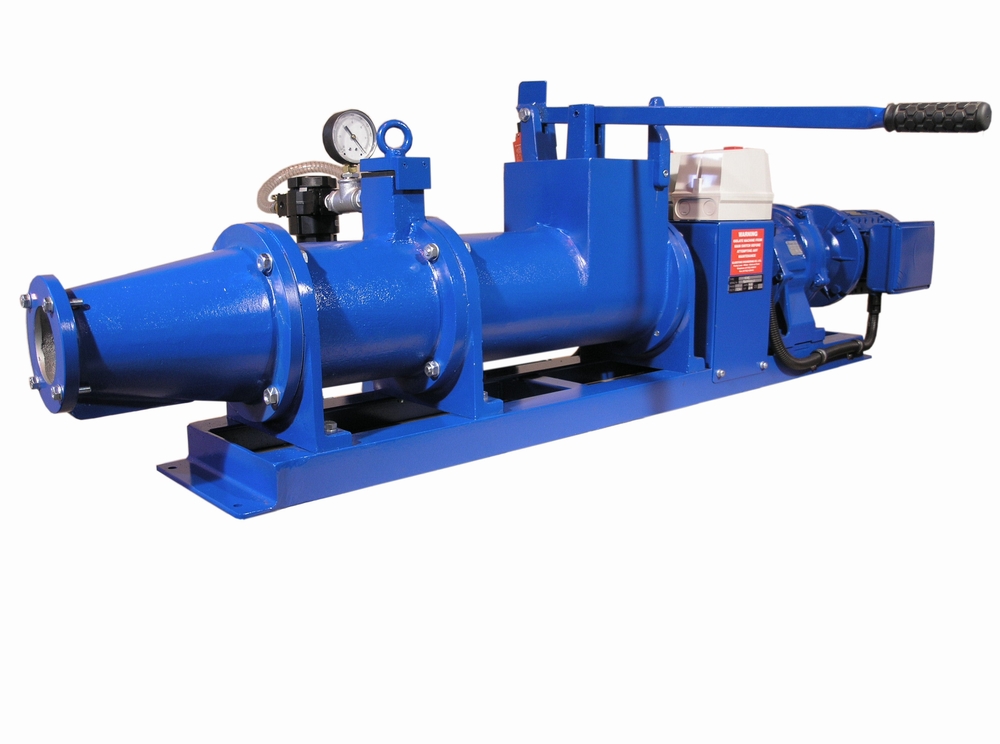

G76 75mm de-airing pugmill

Product Code: G76
The G76 is a 75 mm out let de-airing pugmill this machine can be offered in range of specifications and is ideal for the small studio or educational use.

The standard machine incorporates aluminium barrels and nose cone with aluminium blades and uses the same design drive system as the G48. However, the G76 offers a greater capacity both in output of clay and also an increase in size of extrusions. The G76 can also be fitted with die plates and tile nose cone.


£7,200.00 (£6,000.00 Ex VAT)

Qty: 1 2 3 4 5 6 7 8 9 10

Pallet Delivery: £396.00 (£330.00 Ex VAT)

Specifications
Delivery Weight:	145kg
Vacuum pump:	High volume oil immersed
Drive Motor:	1.1Kw (1.5Hp) reduction drive gearbox direct drive 230/ 400v
Output:	Approximately 320 Kg per hour
Dimensions:	1600mm long x 500mm wide x 470mm high
Construction:	Cast Aluminium 150mm barrel with 75mm extrusion , Split body to facilitate easy cleaning
Finish:	Durable powder coated finish

Gladstone Engineering reserves the right to change any specifications without notice.
