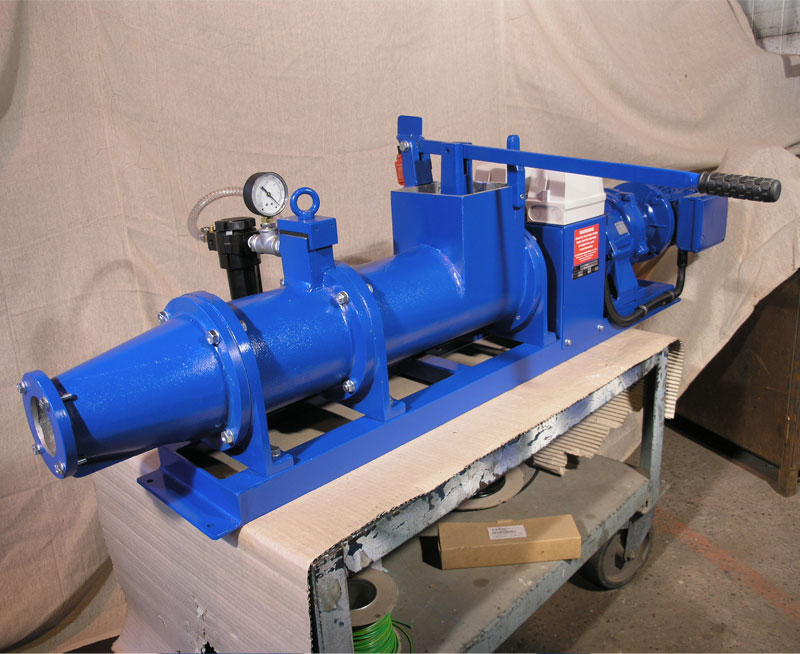

G54 100mm de-airing Pugmill

G54 100mm de-airing Pugmill
Product Code: G54
The G54 is the largest outlet machine at 100 mm, capable of producing up to 500 kilos per hour of clay, and it is also extremely robust in construction. The G54 uses heavy section cast Alloy barrels with anti barrelling strips, and the auger consists of individual Alloy blades mounted on a hexagonal shaft. These can be altered in configuration depending on the required performance.

The G54 is supplied complete with all the required switch gear and a interlocked hopper safety switch.


£6,960.00 (£5,800.00 Ex VAT)
Qty:
Pallet Delivery: £192.00 (£160.00 Ex VAT)
Please Note! This product is subject to a delivery charge of £160.00 Ex VAT per item
[click here for more details about our delivery system]


Specifications

Delivery Weight: 180kg
Vacuum pump: High volume oil immersed
Drive Motor: 2.2Kw (3 Hp) reduction drive gearbox direct drive 230 single phase / 400v three phase
Output : Approximately 500 Kg per hour
Dimensions: 1800mm long x 320mm wide x 670mm high
Construction: Cast Aluminium 200mm barrel with 100mm extrusion , Split body to facilitate easy cleaning
Finish: Durable powder coated finish

Gladstone Engineering reserves the right to change any specifications without notice.
