G152 Reversible Plaster Turning Lathe

Product Code: G152
The Gladstone Potters Lathe is another addition to our range of professional equipment, built to give a long trouble free life with little maintenance required. The machines construction consists of a 6mm steel base, and at each end there are two aluminium plates in which the bearings are mounted. The shaft is 35 mm in diameter with a I' Whitworth thread. The motor is a 1/2 Hp AC which transfers its drive to the shaft via a V belt and pulley. The speed is controlled by a AC electronic speed controller which has a reversing facility on it and the speed is varied by a hand operated knob, a foot operation is available as an optional extra.
The machine is totally enclosed for protection and comes complete with an adjustable tool rest and its own base to which the tool rest is fixed.

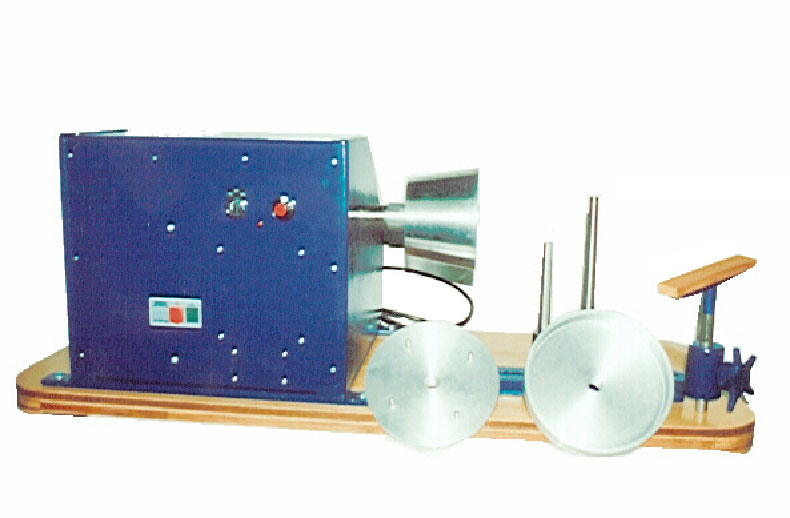

Please note this is shown with optional extras.


£3,120.00 (£2,600.00 Ex VAT)

Qty: 1 2 3 4 5 6 7 8 9 10

Pallet Delivery: £198.00 (£165.00 Ex VAT)

Specifications
Delivery Weight:	90kg
Drive Motor:	0.37kw single phase 230volts variable speed control
Construction:	Electrically welded steel frame Aluminium bearing plates
Speed Range:	3—380 rpm
Dimensions:	Length 1220mm x width 470mm x 410mm high

Gladstone Engineering reserves the right to change any specifications without notice.
