G40 Bailey 1Hp VF wheel

Product Code: G40
The G40 Bailey VF wheel is a development of our popular G34 Bailey wheel using the same key design features, we have given the Bailey VF wheel greater power by fitting a larger 0.75Kw (1Hp) motor and drive system and is now fitted with a larger splash tray.

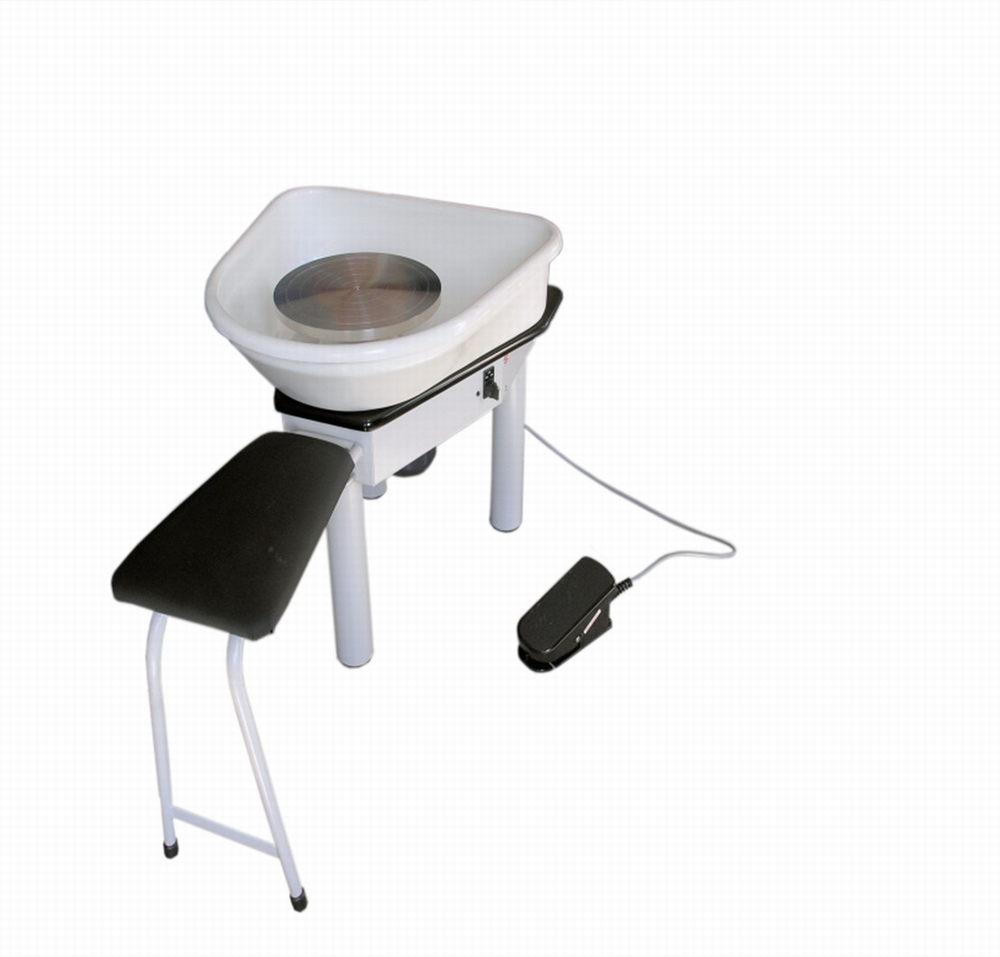

This now offers a wheel that has the power that can handle the most demanding of throwing yet in a compact comfortable design. The Bailey VF 1Hp wheel can be fitted with an optional seat (shown) and optional work shelf and is fitted as standard with reversing switch and remote foot pedal for the speed control.
The Bailey VF 1Hp wheel a wheel with superior performance for the experienced and professional thrower.

Please note wheel is shown with options fitted, these options are available at extra cost
Options available
Fitted Seat , Shelf unit , Shaft extension to raise the height of the wheel head,bat pins and Easy lift wheel heads for wooden bats.



£2,100.00 (£1,750.00 Ex VAT)

Qty: 1 2 3 4 5 6 7 8 9 10

Specifications
Delivery Weight:	80kg
Dimensions:	740 mm long x 670 mm wide x 740 mm high Weight 60 Kg
Drive Motor:	Ac variable speed 0.75 Kw ( 1 Hp) industrial continually rated 0-280 RPM 230v power supply
:
Wheel head:	12 inch (305 mm) Aluminium , Optional easy lift and studded wheel heads for bats available
Centering weight:	40 kgs max weight 140kgs
Constrction:	Precision laser fabricated chassis with a durable powder coated finish , Sealed for life separate bearing housing

Gladstone Engineering reserves the right to change any specifications without notice.
